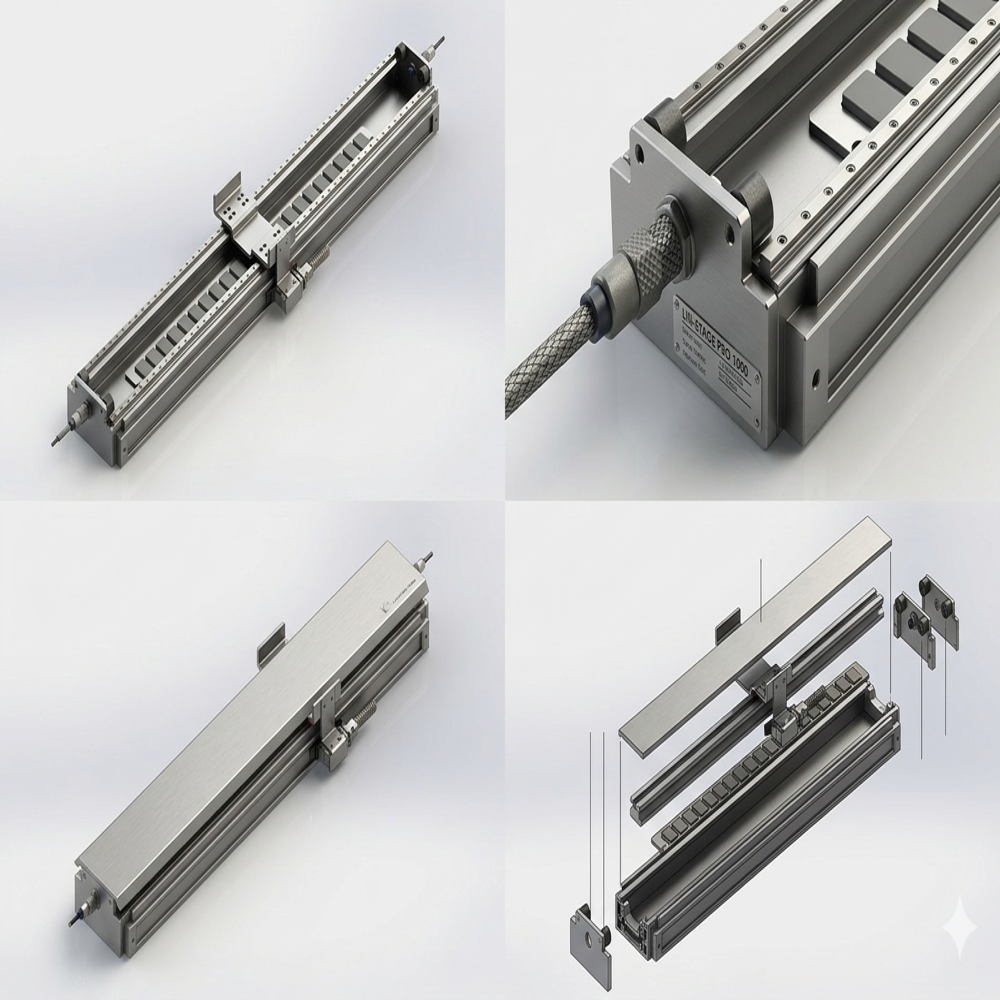

Linear Actuator

Linear Actuator Specification

Accuracy
0.1 mm

Pressure
Suitable for up to 10 MPa (Hydraulic/Pneumatic type) or standard electrical input (Electric type).

Connection
Mounting holes at both ends; electrical connections via wiring terminals.

Function
Converts rotary motion into linear motion for precise positioning and movement of loads.

Size
Customizable as per application requirements; Standard size: 100 mm to 600 mm stroke length.

Ambient Temperature Range
-10C to 50C

Load Capacity
Up to 1500 N (depends on model)

Stroke Length
100 mm to 600 mm (customizable)

Life Cycle
Up to 100,000 cycles (maintenance dependent)

Material
Aluminum alloy housing with stainless steel rod

Linear Speed
10 mm/s to 100 mm/s

Input Voltage
12V/24V DC, 220V AC (electric models)

Duty Cycle
Up to 25% at max load

Noise Level
< 50 dB

Protection Class
IP54 to IP65

Linear Actuator Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

Linear Actuator About

High-Precision Linear Actuators Designed & Manufactured in Pune | Quintrans Hyperloop Pvt. Ltd.

About the Product: Engineered for demanding industrial, robotics, and automation applications, our linear actuators offer industry-leading repeatability and operational stability. At Quintrans, we bridge the gap between advanced motion control theory and robust hardware implementation. Each unit is precision-machined and rigorously tested in our dedicated facility to ensure seamless integration into your motion systems.

Key Features:

Precision Performance: Optimized for high-accuracy positioning, essential for automated systems, medical instruments, and industrial robotics.
Advanced Engineering: Developed with modern CAD/CAM methodologies to ensure optimal load distribution, speed control, and longevity.
Tailored Solutions: Designed to meet diverse power and stroke requirements, from compact micro-actuators to high-force industrial units.
Reliability Assured: Every actuator undergoes multi-stage performance validationcovering load capacity, speed, and positioning accuracybefore leaving our Pune manufacturing floor.

Technical Specifications (Customize per item):

Construction: Ruggedized housing designed for continuous-duty cycles.
Integration: Designed for simple interfacing with industry-standard controllers and embedded systems.
Versatility: Suitable for aerospace subsystems, laboratory automation, and heavy-duty logistics infrastructure.

Why Partner with Quintrans? We are more than just a supplier; we are your engineering partner. Our team provides end-to-end support, from initial product selection and integration guidance to post-purchase technical assistance. We are committed to empowering your projects with reliable, high-performance motion hardware.

Manufacturing Origin: Bhosari, Pune, Maharashtra.
Support: Technical consultation available for custom integration and system optimization.

Quick Tips for TradeIndia:

Categorization: Ensure these are listed under "Linear Actuators" and "Automation Equipment" to maximize visibility for industrial buyers.
Call-to-Action: Keep the "Get a Quote" prompt prominent, as your current range (e.g., from Micro Actuators at 3,499 to High-Force systems) attracts both R&D hobbyists and industrial procurement managers.
Image Optimization: Since you have a professional facility, upload clear images showing the housing finish and any visible mounting points, as this signals build quality to B2B buyers.

Customizable Precision for Diverse Applications

Whether you need a standard or tailored solution, this linear actuator offers stroke lengths from 100 mm to 600 mm, ensuring adaptability for automation, industrial machinery, or specialized tasks. Highly accurate to 0.1 mm, it provides smooth, controlled linear motion for positioning or lifting demands.

Durability Meets Performance

Constructed with high-quality aluminum housing and a stainless steel rod, this actuator can withstand rigorous use. Its protection class (IP54 to IP65) shields it from dust and water, while the high load capacity and customizable speed deliver dependable operation across environments.

FAQ's of Linear Actuator:

Q: How can I customize the stroke length or load capacity for my specific application?

A: You can request a customized stroke length between 100 mm and 600 mm, and choose an appropriate model to match your required load capacity, up to 1500 N. Please contact the manufacturer or supplier to specify your needs and receive guidance on suitable configurations.

Q: What input voltage options are available for this linear actuator?

A: This linear actuator is available in electric models supporting 12V or 24V DC and 220V AC, providing flexibility for various power supply requirements. Hydraulic and pneumatic options use standard electrical controls appropriate for their type.

Q: When should I consider a higher protection class such as IP65?

A: If your application operates in challenging environments with exposure to dust, moisture, or water spray, selecting an actuator with IP65 protection ensures enhanced durability and prevents ingress that could compromise performance.

Q: Where can this actuator be installed, and how is it connected?

A: The actuator can be installed in various industrial or automation settings. It comes with mounting holes at both ends for stable attachment and wiring terminals for secure electrical connections, ensuring simple integration into your system.

Q: What is the expected lifetime and maintenance process for this actuator?

A: The actuator is designed for up to 100,000 cycles, depending on proper maintenance. Regular inspection, lubrication (for mechanical integrity), and ensuring clean connections will help maximize its operational life.

Q: How can users benefit from the duty cycle specification?

A: The 25% duty cycle at maximum load ensures the actuator can operate at full capacity for a quarter of every hour, making it ideal for applications requiring intermittent rather than continuous movement, thus preventing overheating and prolonging lifespan.
