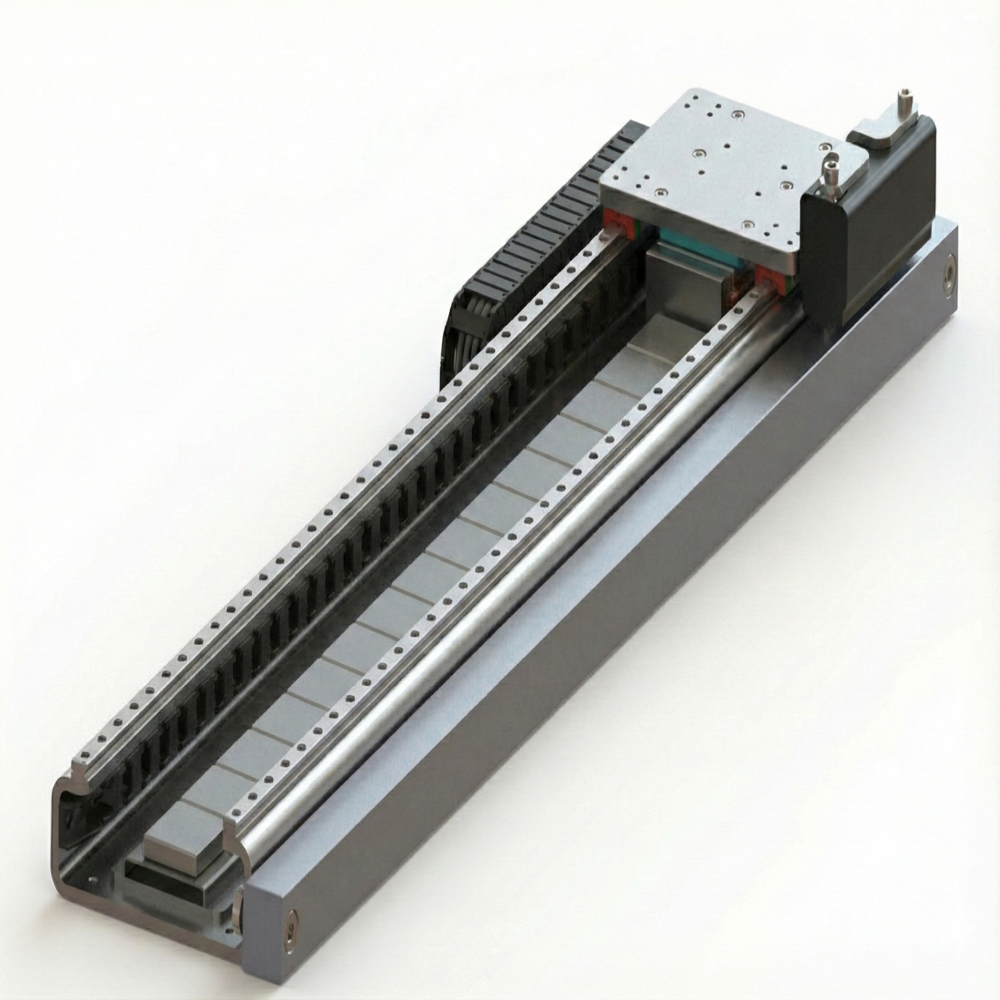

Precision Linear Motor Stage 1 m/s speed 250N force

About Precision Linear Motor Stage 1 m/s speed 250N force

Elevate your automation and manufacturing capabilities with the Quintrans Linear Motor Stage. Engineered for industries that demand uncompromising reliability and precision, this stage combines high-acceleration, high-speed performance with sub-micron accuracy. Whether you are performing high-speed inspection, precision assembly, or semiconductor manufacturing, the Quintrans stage provides the stability and control required for mission-critical applications.

This system is built to deliver exceptional performance across all key metrics. It achieves a peak force output of up to 250 N, allowing it to handle significant payloads with ease, while maintaining smooth, linear motion even under demanding loads. With a maximum speed of 1 m/s, the stage ensures high throughput for your assembly lines without sacrificing control. The unit is designed with a 500 mm travel stroke, offering a versatile range of motion for medium-format applications, and it delivers a positioning accuracy of 1 micron, ensuring the absolute repeatability required for the most delicate industrial processes.

The direct-drive architecture minimizes backlash and friction, which is essential for maintaining the high-fidelity motion profiles needed in modern manufacturing. By utilizing this stage, your operations benefit from improved cycle times and reduced mechanical wear compared to traditional belt or screw-driven systems. Its rugged design ensures it can withstand the rigors of continuous operation while maintaining its alignment and accuracy over the long term.

This stage is an ideal solution for a wide range of sophisticated applications. It is particularly well-suited for semiconductor and electronics tasks, such as wafer handling, PCB inspection, and micro-electronics assembly. Furthermore, its precision makes it a strong candidate for metrology, including coordinate measurement and optical scanning, as well as laser processing tasks like precision cutting and additive manufacturing. It also serves medical device manufacturing well, where the assembly of delicate, high-value components requires the utmost accuracy.

Ready to integrate the Quintrans advantage? Our engineering team is available to assist with integration support, thermal management considerations, and custom cable management solutions to ensure the Quintrans Linear Motor Stage fits seamlessly into your next project.
